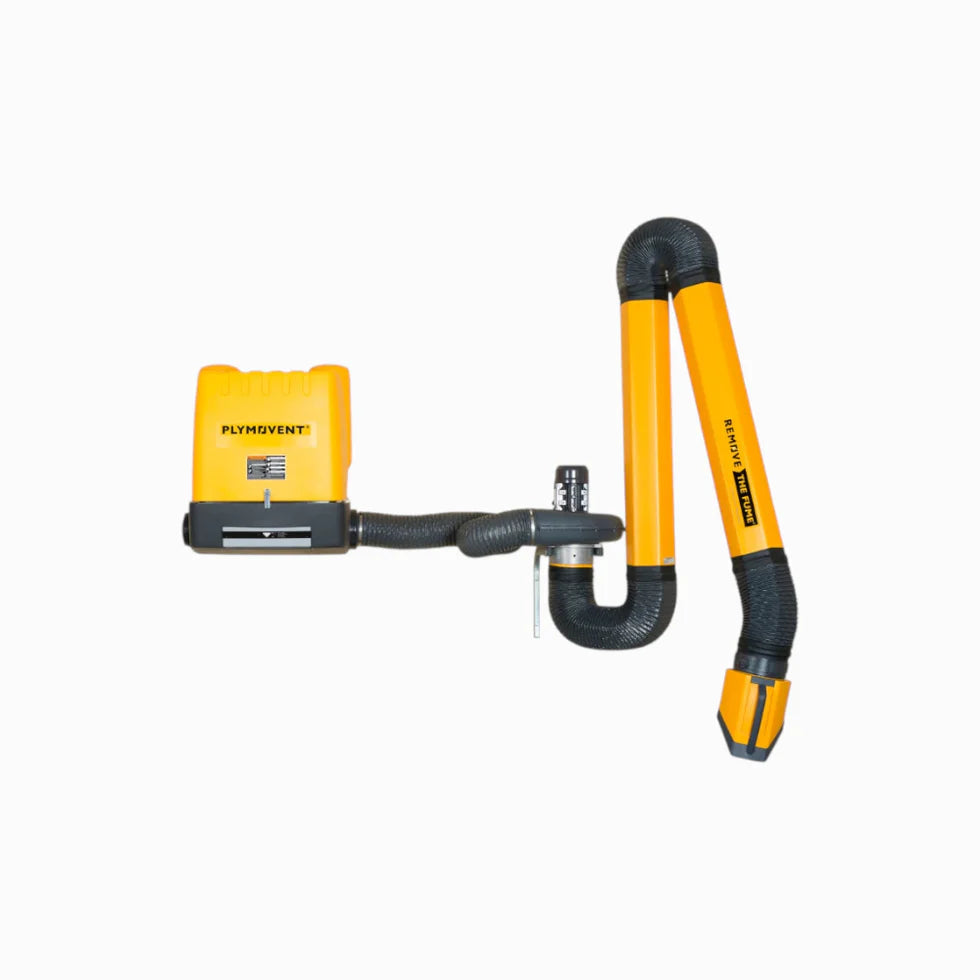

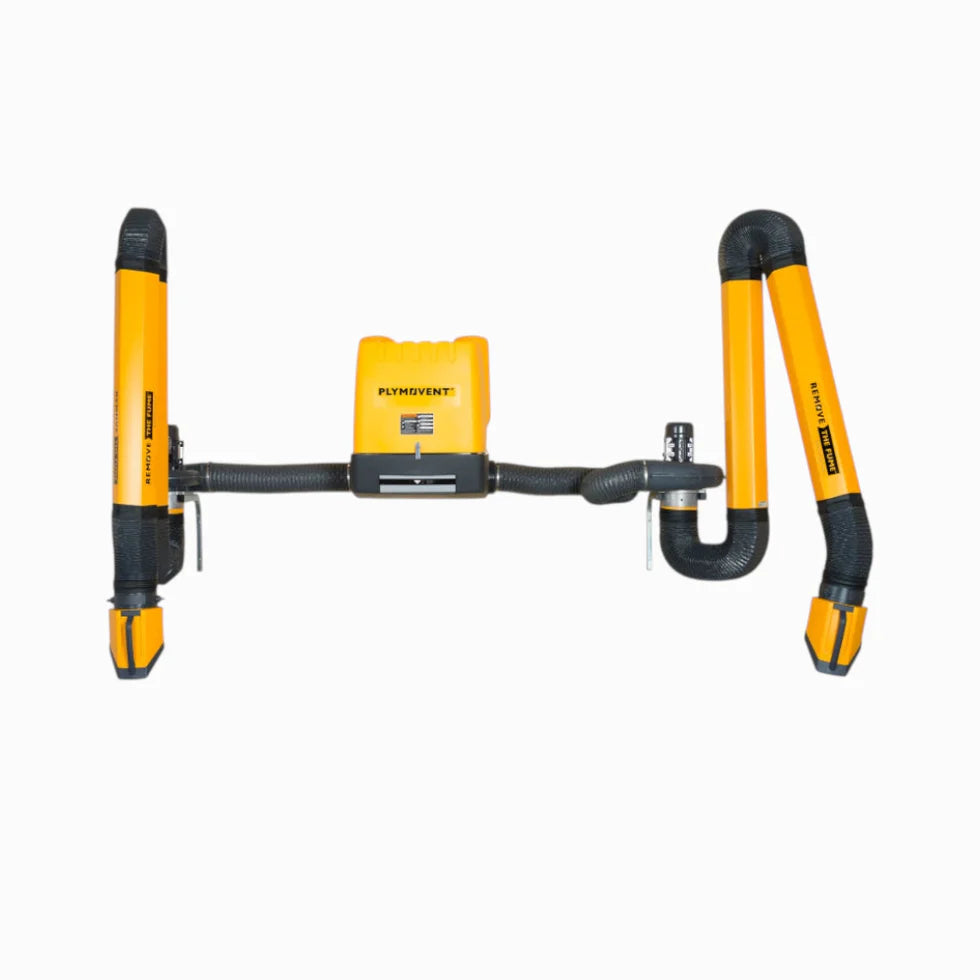

SFD - Stationary Fume Extractor
SFD is a wall-mounted stationary welding fume extractor with disposable filter, designed to capture hazardous welding and grinding fumes directly at the source. Suitable for light-duty and maintenance applications.
Features
- Long filter life thanks to pre-coated DuraFilter system
- Large internal spark arrester for added safety
- Full filter indicator for easy maintenance monitoring
- No electricity required for the filter unit itself
- Wall-mounted, floor space saving design
Item number:
112294
$6,164.00
Styled With
Wall-mounted stationary welding fume extractor. Recommended for:
- Light to medium welding activities with occasional use
- Repair shops and maintenance environments
- Welding schools and technical training facilities
- Small fabrication and production facilities
- Plant maintenance applications
- Workshops with limited floor space
- General fabrication where flexibility is key
Documents & Specs
Certificate
The SFD is in accordance with the following directives:
- CE certified
- Machine Directive 2006/42 EC
- EMC 2014/30 EU
- LVD 2014/35 EU
Recommended use:
Suitable for:
✓ MIG/MAG welding (annual use up to 1500 lbs / 700 kg)
✓ TIG welding
✓ Stick / MMAW welding (annual use up to 1100 lbs / 500 kg)
✓ FCAW welding (annual use up to 1500 lbs / 700 kg)
✓ Spot welding and electrode welding
✓ Welding stainless steel (SS, inox)
✓ Fume extraction during grinding, polishing, and finishing
✓ Workshops with fixed welding positions or limited workspaces
✓ Industries such as repair shops, light fabrication, and education
✓ Welding schools and technical training centers
Not suitable for:
✗ Heavy-duty continuous welding applications
✗ Extraction during metalworking processes that produce sparks (risk of filter fire)
✗ Extraction during aluminum laser cutting
✗ Extraction during grinding of aluminum or magnesium
✗ Oil mist extraction
✗ Extraction during carbon arc gouging
✗ Extraction of aggressive fumes and gases (e.g., acids, alkaline substances, lithium-containing soldering pastes)
✗ Extraction of hot gases (continuously above 158°F / 70°C)
✗ Extraction during flame spraying
✗ Extraction of cement, sawdust, wood chips, etc.
✗ Vacuuming cigarettes, cigars, tissues, or other glowing, flammable, or burning materials, objects, or acids
✗ Any situation involving explosive substances or gases
Product specifications
| Category | Specification | Details |
|---|---|---|
| Physical dimensions and properties | Material (housing) | Electro-zinc coated steel |
| Filter surface | 50 m² (538 ft²) | |
| Filter type | Disposable, pre-coated | |
| Max airflow capacity | Up to 1250 m³/h (736 CFM at hood) | |
| Color | Yellow RAL 1004 / Red | |
| Weight (net), excl. arms | 181 kg (400 lbs) | |
| Dimensions | 122 × 122 × 224 cm (48 × 48 × 88 in.) | |
| Mains cord | Not included | |
| Compatible fans | FAN-28 | For arms up to 4 m (1 HP, 115V) |
| FAN-42 | For extended arms over 4 m | |
| Extraction arms | Type | Flex Arm, UltraFlex, T-Flex |
| Diameter | Ø 160 mm (6.3 in.) | |
| Hood opening | Ø 300 mm (11.8 in.) | |
| Length per arm | 2 m (7'), 3 m (10'), or 4 m (14') |
Product description

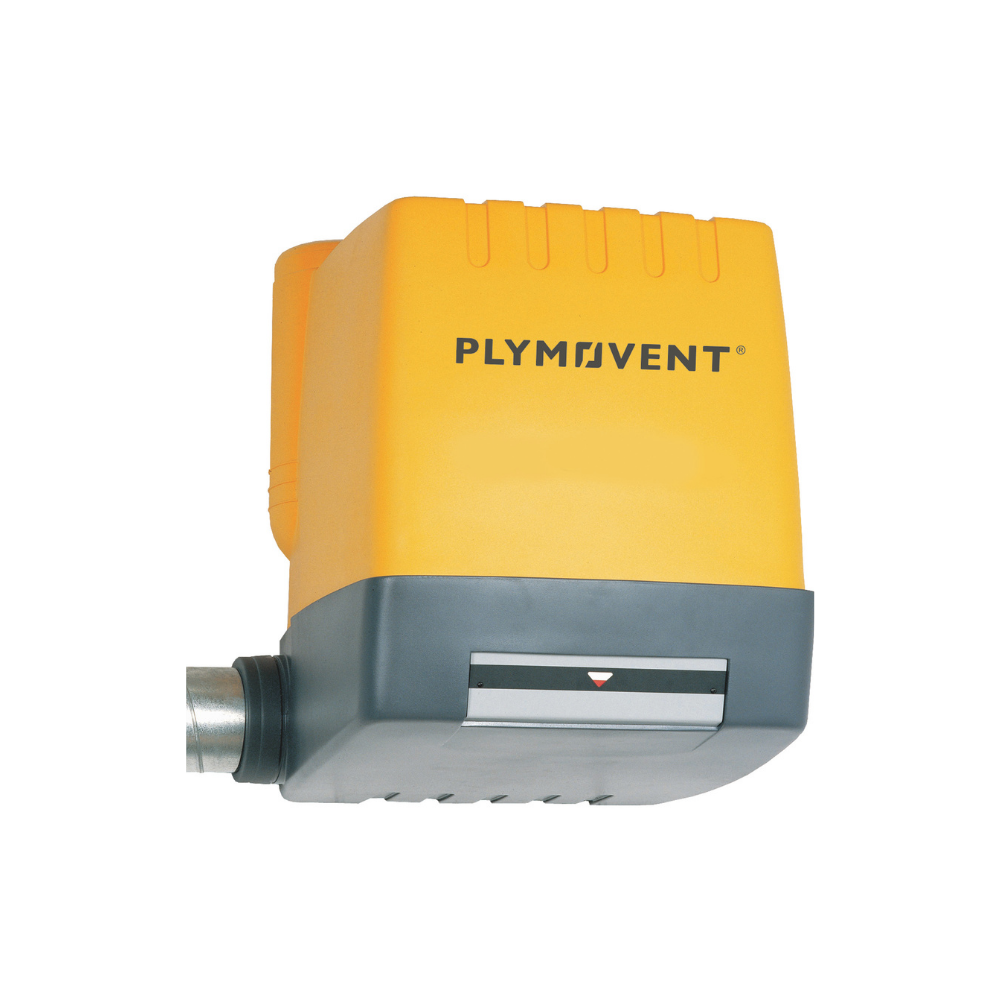

The SFD is a wall-mounted stationary filter unit equipped with a disposable filter, engineered to remove hazardous welding fumes at the source. With one of the largest filter surfaces in its category at 50 m² (538 ft²), it delivers reliable filtration performance for facilities that require clean air without the demands of heavy-duty continuous welding.
The unit features a pre-coated filter that enhances both lifespan and filter efficiency, ensuring consistent performance over time. A large internal spark arrester provides an added layer of protection, reducing the risk of filter fires from incidental sparks. The filter status indicator makes maintenance straightforward, giving operators a clear visual cue when filter replacement is due.
Reliable, space-saving entry-level solution

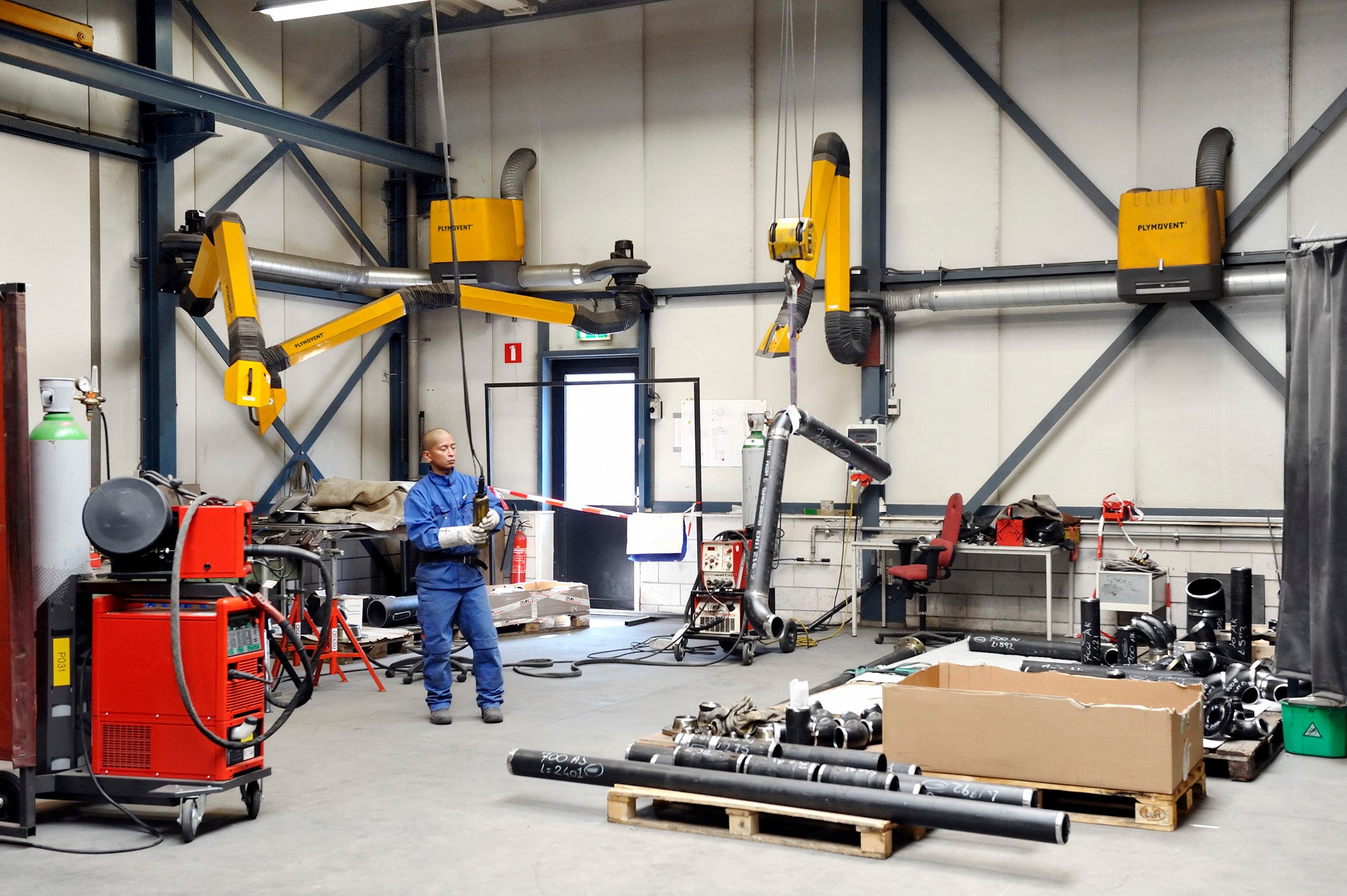

The SFD is a solid choice when welding activities are occasional, light, or generate moderate fume levels, such as TIG welding or light MIG/MAG work. Its wall-mounted design keeps the workspace clear while still providing effective source extraction right where the fumes are generated.
You will typically find the SFD in repair shops, training environments such as welding schools and technical colleges, plant maintenance areas, and small to mid-size fabrication facilities where clean air is essential, but heavy-duty continuous extraction isn't required. It offers welders and fabricators an effective, user-friendly solution that protects personnel from hazardous fumes without taking up valuable floor space.
