Mobile Fume Extractor MFD
  • Mobile Fume Extractor MFD
  • Mobile Fume Extractor MFD
  • Mobile Fume Extractor MFD
Mobile Fume Extractor MFD

Mobile Fume Extractor MFD

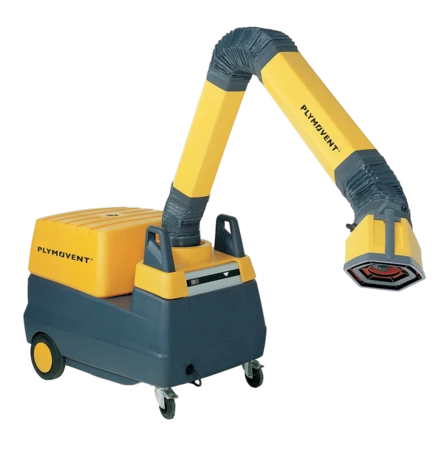

The MFD mobile welding fume extractor is a flexible and cost-effective solution for removing welding fumes directly at the source. Designed for small to mid-sized workshops, this portable unit helps improve air quality without the need for a fixed extraction system.

With its integrated fan and high-efficiency DuraFilter, the MFD captures harmful welding fumes before they reach the breathing zone. The compact, mobile design allows you to move the unit easily between workstations, making it ideal for environments with multiple welding locations.

Whether you’re working with MIG, MAG, TIG, or stick welding, the MFD delivers reliable performance for light to moderate welding applications while keeping your workspace cleaner and safer.

Kies voor een gezonde werkomgeving: werk met schone lucht tijdens het lassen!

✔ Effective source capture – removes welding fumes directly at the source for better air quality

✔ Portable and flexible – easy to move and use wherever extraction is needed

✔ High filtration efficiency – captures over 99% of harmful particles for a safer workplace
$3,988.00 USD

Why choose the MFD?

The MFD offers an accessible solution for companies that want to improve their working environment without immediately investing in complex or costly installations.

Key benefits:

  • Effective source extraction – removes welding fumes directly at the source, exactly where it's needed
  • Flexible deployment – easy to move thanks to its mobile design
  • User-friendly – clear filter indicator prevents unnecessary maintenance
  • Reliable filtration – high filter efficiency (>99%) for a cleaner working environment
  • Ideal for smaller workshops – no fixed installation required
  • Cost-efficient – suitable for light to medium-duty use
Features & highlights
  • Mechanical filter system (DuraFilter) with disposable cartridge
  • Large filter surface of 50 m² for longer service life
  • Integrated fan (plug & play solution)
  • Aluminium spark arrester for extra safety
  • Filter contamination indicator on the control panel
  • Compact and robust design with four wheels (incl. swivel castors)
  • Prepared for connection of extraction arm or hose
Brochures & specifications

Product_data_sheet _MFD_EN
BRO_Mobile_filter_units
Certification

The MFD complies with the following directives:

• Machinery Directive 2006/42 EC
• EMC 2014/30 EU
• Low Voltage Directive 2014/35 EU
• ErP Directive 2009/125 EC

View the declaration: CE DECLARATION
Recommended use

The MFD is ideal for:

  • Light to medium-heavy welding
  • 'Dry' welding fume applications (no oil-containing fumes)
  • MIG/MAG, TIG, FCAW and electrode welding
  • Workshops without a fixed extraction system
  • Workplaces that require flexibility (multiple welding positions)

Not suitable for:

  • Oily fumes or heavy industrial applications
  • Explosive environments or aggressive gases
Product specifications
Specificatie Waarde
Filters (Materiaal & Oppervlak)
Voorfilter Aluminium | 0,5 m²
DuraFilter FCC-50 Hoofdfilter Geïmpregneerde cellulose + polyurethaan + karton | 50 m²
Oppervlaktebehandeling SurfacePlus-precoat op DuraFilter FCC-50
Filterprestaties
Efficiëntie (Voorfilter / Hoofdfilter) 80–90% / >99%
Filterklasse G3 (Voorfilter, DIN EN 779) / M (Hoofdfilter, NEN EN IEC 60335-2-69)

How does the MFD work?

The MFD extracts welding fumes directly at the source using the extraction arm. By positioning the arm close to the welding process, harmful substances are captured before they can spread into the workspace.

The contaminated air is then directed through the extraction arm to the filter unit. Inside the unit, the airflow is evenly distributed and guided through the disposable filter. This filter is specifically designed to effectively capture fine dust particles and welding fumes.

During this filtration process, harmful particles, such as metal particles and fine dust, remain in the filter material. The cleaned air is then returned to the workspace, contributing to a cleaner and safer working environment.

The system is designed so that the airflow remains optimal as long as the filter is not saturated. As the filter becomes fuller, resistance increases. When the maximum capacity is reached, the filter can be replaced quickly and easily.

Thanks to this disposable filter system, there is no need for cleaning or complex maintenance procedures. This ensures constant and reliable operation with minimal downtime.

Configurations and flexibility

The MFD can be adapted to different work situations and preferences.

Possible configurations:

  • Different lengths of extraction arms
  • Various nozzles for specific applications
  • Options for better positioning
  • Adjustments for extra mobility

This allows the unit to be effectively used in diverse workplaces and layouts.

Frequently asked questions about the MFD welding fume extractor:
For which applications is the MFD suitable?

The MFD is suitable for light welding activities and situations where welding is not continuous. This includes small workshops, maintenance work, and training environments.
Is the MFD suitable for heavy-duty use?

No, the MFD is designed for non-continuous applications. For intensive welding, a system with a self-cleaning filter is more suitable.
How often should the filter be replaced?

This depends on usage. Replacement is necessary when the extraction capacity noticeably decreases.This depends on usage. Replacement is necessary when the extraction capacity noticeably decreases.
Is replacing the filter easy?

Yes, the filter can be replaced quickly and without tools. This simplifies maintenance and ensures the unit continues to operate with minimal downtime.
Should the MFD be installed?

No, the MFD is a plug-and-play solution. After connecting it to power, the unit is immediately ready for use, without complex installation or workplace modifications.
Can the MFD be used in multiple workplaces?

Yes, thanks to its mobile design with wheels, the unit can be easily moved. This makes it possible to flexibly deploy one system across various workplaces.
Is the air recirculated into the workspace?

Yes, the air is filtered and then returned to the workspace. The disposable filter captures harmful particles, resulting in cleaner air.
What is the difference with systems that have self-cleaning filters?

The MFD works with a disposable filter that needs to be replaced periodically. Systems with self-cleaning filters clean themselves automatically and are therefore more suitable for intensive and continuous use.
